🧰 Technical specifications

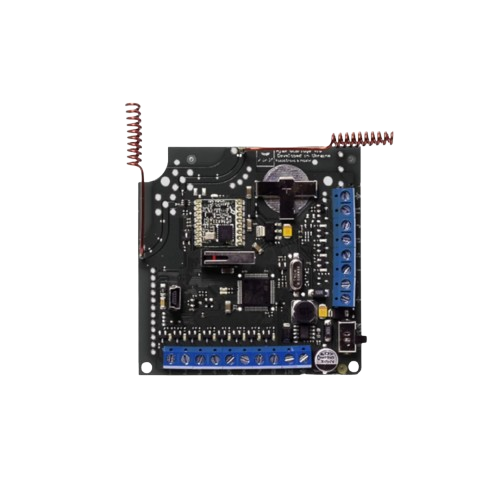

• Type: Wireless detector integration module
• Compatibility: Third-party wired and hybrid alarm systems
• Supported devices: Ajax wireless detectors and accessories
• Maximum connected devices: Up to 99 devices
• Security zones: 8
• Service zones: 4
• Output types: NO / NC transistor outputs
• Communication protocol: Jeweller
• Radio communication range: Up to 2000 m (open space)
• Two-way communication: Yes
• Alarm delivery time: 0.15 seconds
• Operating modes: Pulse / Bistable
• Anti-jamming protection: Yes
• Encryption: Yes
• Tamper protection: Yes
• Power supply: 8–14 V DC
• USB connection: Mini USB for configuration
• Installation: Indoor
• Operating temperature: -10°C to +40°C
• Operating humidity: Up to 75%
• Dimensions: 95 × 92 × 18 mm
