🧰 Technical specifications

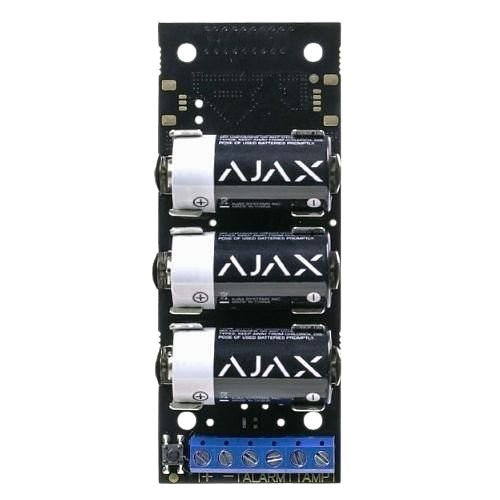

• Type: Wireless module for wired detectors
• Compatibility: Third-party wired detectors and sensors
• Supported detector types: NC / NO contact detectors
• Alarm input type: Pulse / Bistable
• Communication protocol: Jeweller
• Radio communication range: Up to 1600 m (open space)
• Alarm delivery time: 0.15 seconds
• Detector power supply output: 3.3 V DC
• Power supply: 3 × CR123A batteries
• Battery life: Up to 5 years
• Tamper protection: Yes
• Anti-jamming: Yes
• Two-way communication: Yes
• Operating temperature: -25°C to +50°C
• Operating humidity: Up to 75%
• Protection class: IP50
• Installation: Indoor / inside detector housing
• Dimensions: 100 × 39 × 22 mm
• Weight: 74 g
