🧰 Technical specifications

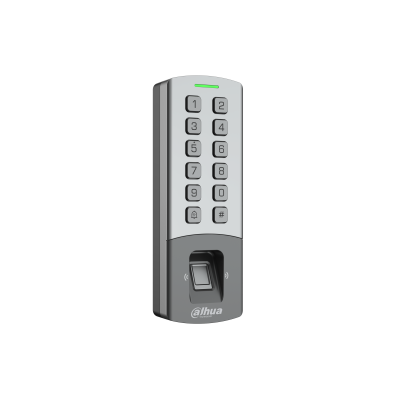

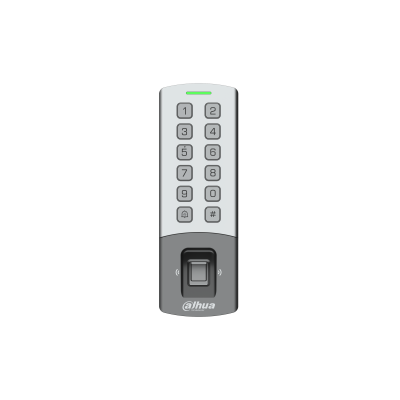

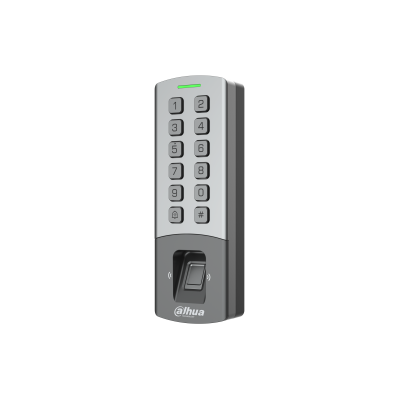

• Model: DHI-ASI1212M-DW
• Type: Fingerprint Access Standalone
• Verification methods: Fingerprint, Card, Password, Remote
• Card technology: 125 kHz EM ID
• Fingerprint capacity: 3,000 fingerprints
• User capacity: 10,000 users
• Card capacity: 10,000 cards
• Password capacity: 10,000 passwords
• Record capacity: 100,000 records
• Fingerprint sensor: Capacitive
• Fingerprint recognition time: 0.5 s
• Fingerprint comparison time: 1.5 s
• Card reading distance: Up to 30 mm
• Keypad: Mechanical keypad with backlight
• Communication protocols: TCP/IP, RS-485, Wiegand, OSDP
• Network protocols: IPv4, IPv6, TCP, UDP, P2P
• Wi-Fi: IEEE 802.11 b/g/n
• Network port: RJ-45 10/100 Mbps Ethernet
• Reader interfaces: 1 × RS-485, 1 × Wiegand
• Alarm inputs: 2 channels
• Alarm outputs: 1 channel
• Doorbell: Supported
• Exit button input: 1 channel
• Door status detection: 1 channel
• Lock control: 1 channel
• Power output: 12 VDC, 0.5 A
• Multi-factor authentication: Yes
• Real-time monitoring: Yes
• Web configuration: Yes
• Auto registration: Yes
• Anti-passback: Yes
• Tamper alarm: Yes
• Duress alarm: Yes
• Duress fingerprint: Yes
• Intrusion alarm: Yes
• Door timeout alarm: Yes
• Illegal card alarm: Yes
• Time schedules: 128 periods
• Holiday schedules: 128 periods
• Power supply: 12 VDC, 1.5 A
• Protection rating: IP65, IK08
• Operating temperature: -30°C to +60°C
• Operating humidity: 5%–95% RH
• Installation: Wall mount
• Dimensions: 169 × 57.5 × 33.3 mm
• Compatible software: SmartPSS Lite, DSS Pro, DMSS
• Suitable for indoor and outdoor use
