🧰 Technical specifications
• Model: ASR1201D-D

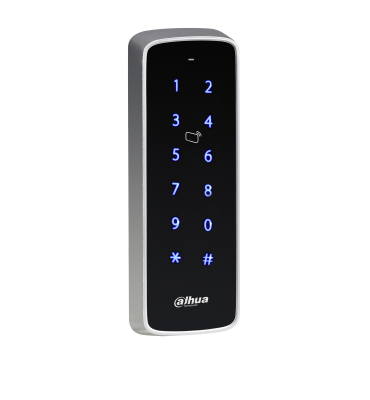

• Type: RFID Reader with Keypad
• Card technology: 125 kHz EM-ID Card
• Communication: RS-485, Wiegand 34 (Wiegand 26 optional)
• Reading distance: 1–3 cm
• Reading time: < 0.1 s
• Keypad: 12-key keypad (0–9, *, #)
• LED indicators: Red and Blue LEDs
• Buzzer: Yes
• Tamper alarm: Yes
• Protection rating: IP55
• Power supply: 9–15 VDC / 100 mA
• Operating temperature: -30°C to +60°C
• Operating humidity: ≤95% RH
• Installation: Surface mount / Flush mount
• Operating environment: Outdoor
• Dimensions: 135 × 47.5 × 16 mm
• Weight: 0.18 kg
• Certifications: CE, FCC
