🧰 Technical specifications

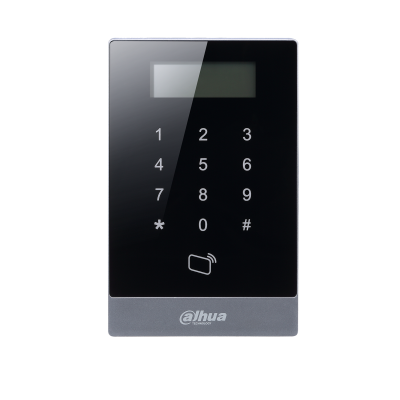

• Model: ASI1201A-D
• Type: RFID Standalone Access Controller
• Card technology: 125 kHz EM ID
• Display: LCD display
• Keypad: Touch-sensitive keypad with blue backlight
• Card capacity: 30,000 cards
• Event capacity: 150,000 records
• Access modes: Card, Password, Card + Password
• Reading distance: 3–8 cm
• Response time: < 0.1 s
• Communication with PC: TCP/IP (RJ45 10/100M)
• Reader interface: Wiegand / RS-485
• Door lock output: 1 relay output
• Inputs: Door sensor ×1, Exit button ×1, Alarm input ×1
• Outputs: Door lock ×1, Bell ×1, Alarm ×2
• User management: General, VIP, Guest, Patrol, Blocklist, Duress
• Alarm functions: Door timeout, Intrusion, Duress and Tamper alarm
• Anti-passback: Yes
• Multi-card open: Yes
• Attendance function: Supported
• Time schedules: 128 schedules, 128 periods, 128 holiday periods
• RTC: Yes
• Buzzer: Yes
• Power supply: 9–15 VDC / 200 mA
• Operating temperature: -5°C to +55°C
• Operating humidity: ≤95% RH
• Dimensions: 97 × 16 × 150 mm
• Weight: 0.3 kg
