🧰 Technical Specifications
• Model: PFM320-020EN

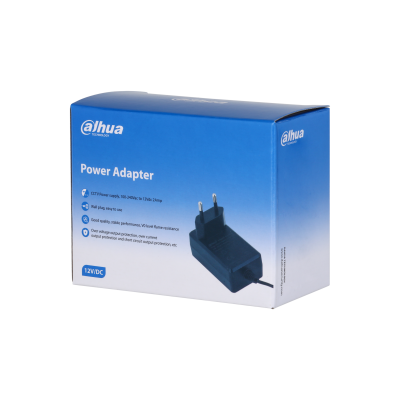

• Type: 12V DC Power Adapter
• Input Voltage Range: 100VAC–240VAC
• Output Voltage: DC12V
• Rated Output Current: 2A
• Output Power: 24W
• Efficiency: ≥86.20%
• No Load Power Consumption: ≤0.1W
• Surge Protection:
• Line to Ground: ±4KV
• Line to Line: ±2KV
• ESD Protection:
• Contact Discharge: ±6KV
• Air Discharge: ±8KV
• Protective Functions: Over voltage protection, over current protection, short circuit protection, input protection
• Working Temperature: 0°C ~ +40°C
• Working Humidity: 10% ~ 90% RH
• Storage Temperature: -40°C ~ +80°C
• Storage Humidity: 5% ~ 95% RH
• Installation: Wall-mount
• Input Plug: 2-pin Euro Plug
• Output Plug: Φ5.5 mm × Φ2.1 mm × 10 mm
• Output Cable Length: 1500 mm
• Material: V-0 Flame Resistant Housing
• Color: Black
• Dimensions: 70 × 40 × 27.5 mm
• Weight: 0.096 kg
• Certification: CE
