🧰 Technical specifications

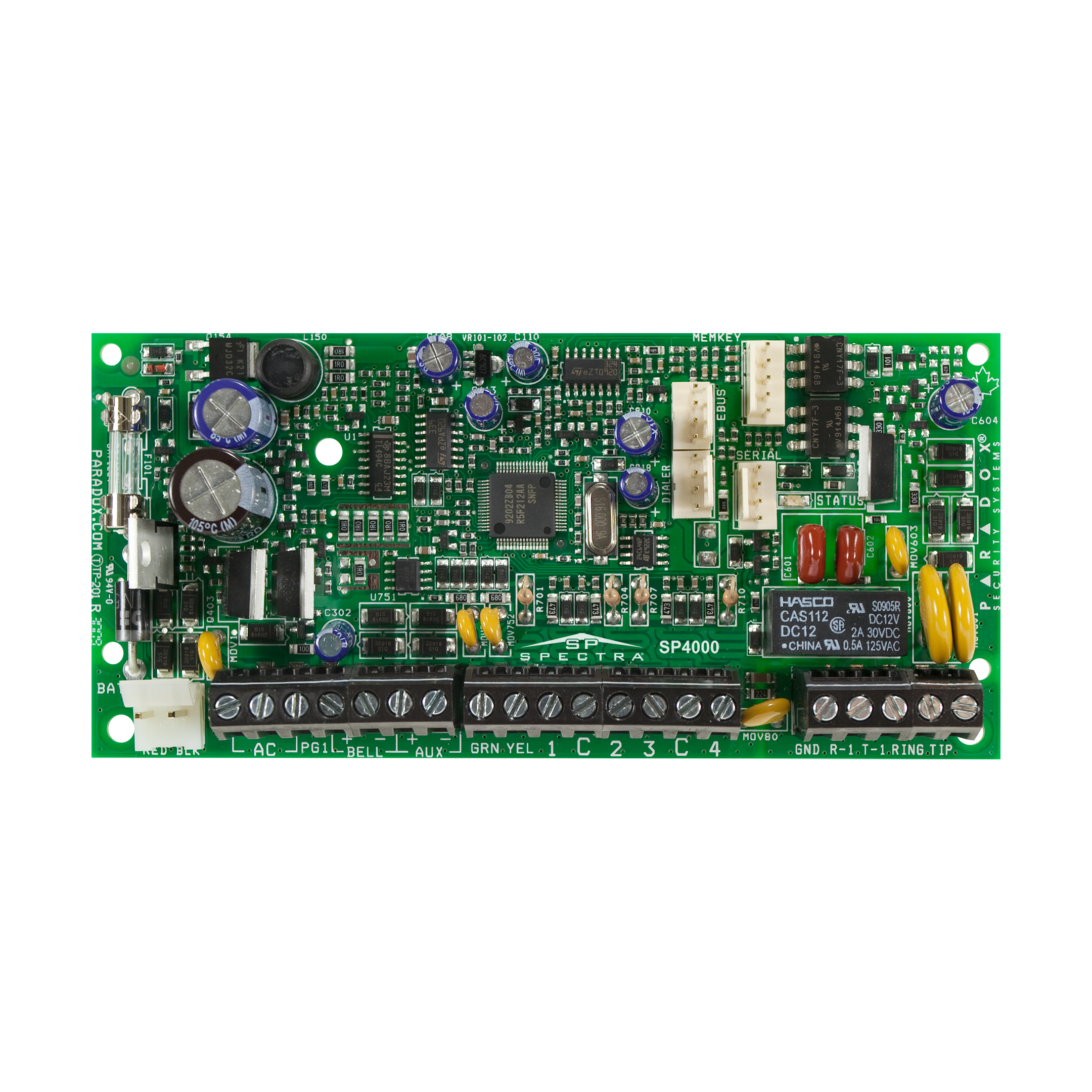

• Model: SP4000
• Type: Hybrid Alarm Control Panel
• On-board zones: 4 zones
• Maximum zones: 32 zones
• ATZ support: Up to 8 zones with ATZ
• Wireless support: Via RX1 receiver
• Hardwired zone expansion: ZX8, ZX8SP, ZX8 modules
• PGM outputs: Up to 12 PGMs
• On-board PGM: 1
• Partitions: 2
• User codes: Up to 32 users
• Keypad bus: 4-wire expansion bus
• Maximum keypads: Up to 15 keypads
• StayD mode: Yes
• Wired siren support: Yes
• PCS Series module support: Yes
• IP150 Internet Module support: Yes
• VDMP3 Plug-In Voice Dialer support: Yes
• PMC5 USB Memory Key support: Yes
• Mobile app control: Insite GOLD
• Programming: Menu-driven installer, master and maintenance programming
• Telephone reporting: 3 monitoring station numbers, 5 personal dialing numbers, 1 pager number
• Dialer technology: Patented dual opto-coupler dialer circuit
• Automatic daylight saving time: Yes
• Hardware reset button: Yes
• Remote control compatibility: RAC1, REM1, REM15, REM101 (via RX1)
• Firmware upgrade: In-field upgrade via BabyWare
• Application: Residential and commercial intrusion alarm systems
• Certification: CE
