Paradox Direct Connect Interface 307USB

Name: Paradox Direct Connect Interface 307USB
SKU: 6499
Price: 4500.00 MKD
Availability: InStock

4.500,00 ден

Paradox 307USB is a direct connect interface designed for on-site communication between a computer and compatible Paradox alarm control panels. It enables system programming, diagnostics, configuration management, and firmware upgrades through BabyWare and NEware software. The interface supports both USB and DB9 serial connections, providing a reliable communication link between the PC and the alarm panel.

Product Datasheet

Category: Алармни системи

Description

🧰 Technical specifications

• Model: 307USB
• Type: Direct Connect Interface
• Function: Direct PC-to-panel communication
• Firmware upgrade support: Yes
• Compatible control panels:
• EVO Series
• Spectra SP Series
• MG5000 / MG5050
• MG6250
• Compatible software:
• BabyWare
• NEware

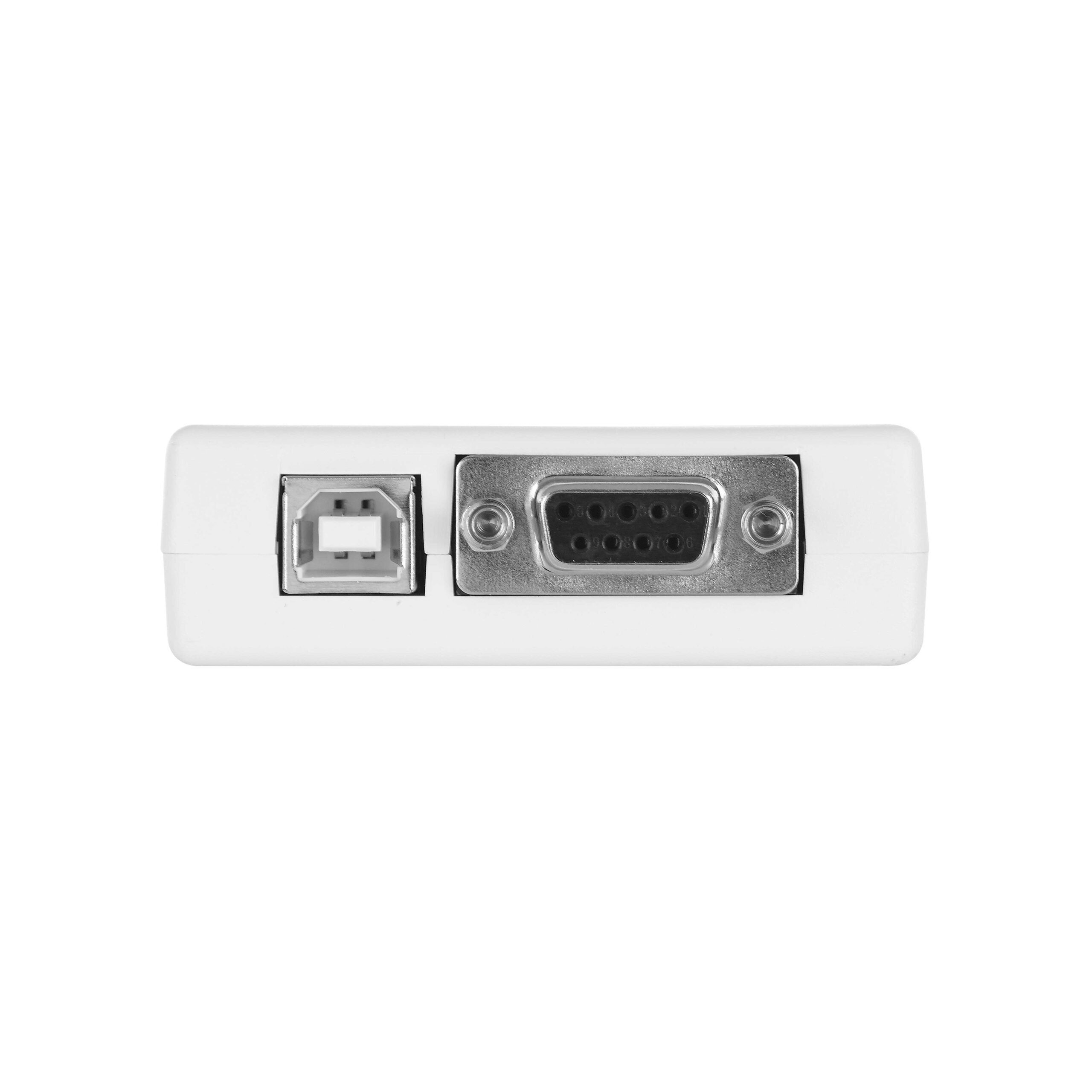

• Connection type: USB / DB9 Serial
• USB driver required: Yes
• USB maximum cable length: 8 m
• DB9 maximum cable length: 5 m

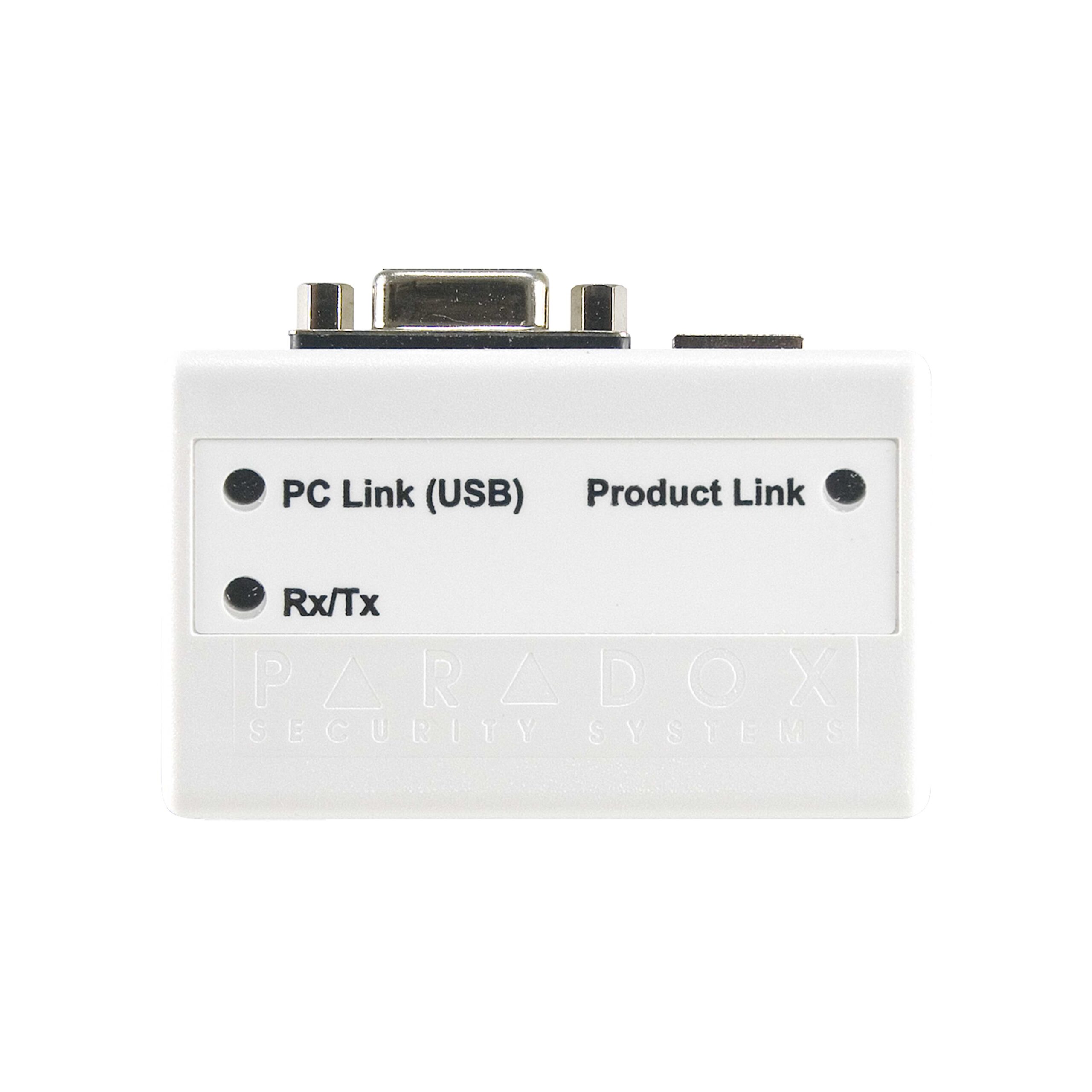

• PC Link USB LED: Indicates communication with PC
• Product Link LED: Indicates connection with control panel
• RX/TX LED: Indicates data transmission and reception
• Communication setup: Selectable COM port in BabyWare and NEware
• Application: Alarm panel programming, diagnostics, maintenance and firmware updates
• Installation: Direct connection between PC and alarm panel
