🧰 Technical specifications

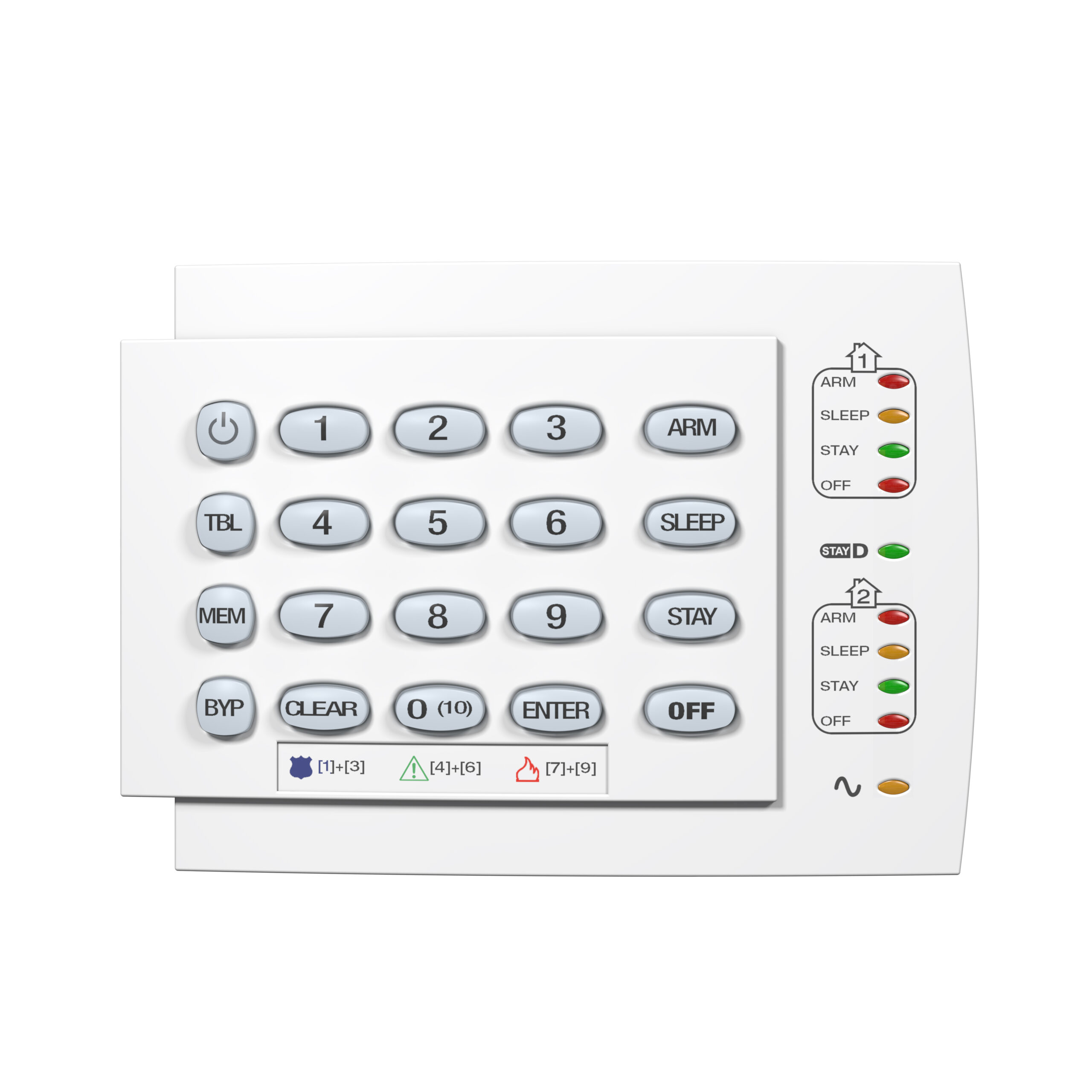

• Model: K10H
• Type: Hardwired LED Keypad Module
• Display type: 10-zone LED display
• StayD mode: Supported
• Zone input: 1 keypad zone input
• Partition indication: Separate Arm, Sleep, Stay and Off LEDs per partition
• Key Light display: Patented Key Light open-zone indication
• Chime zones: Independently selectable
• One-touch buttons: 7 programmable action buttons
• Panic alarms: 3 keypad-activated panic alarms
• Backlight: Adjustable
• Communication bus: 4-wire communication bus

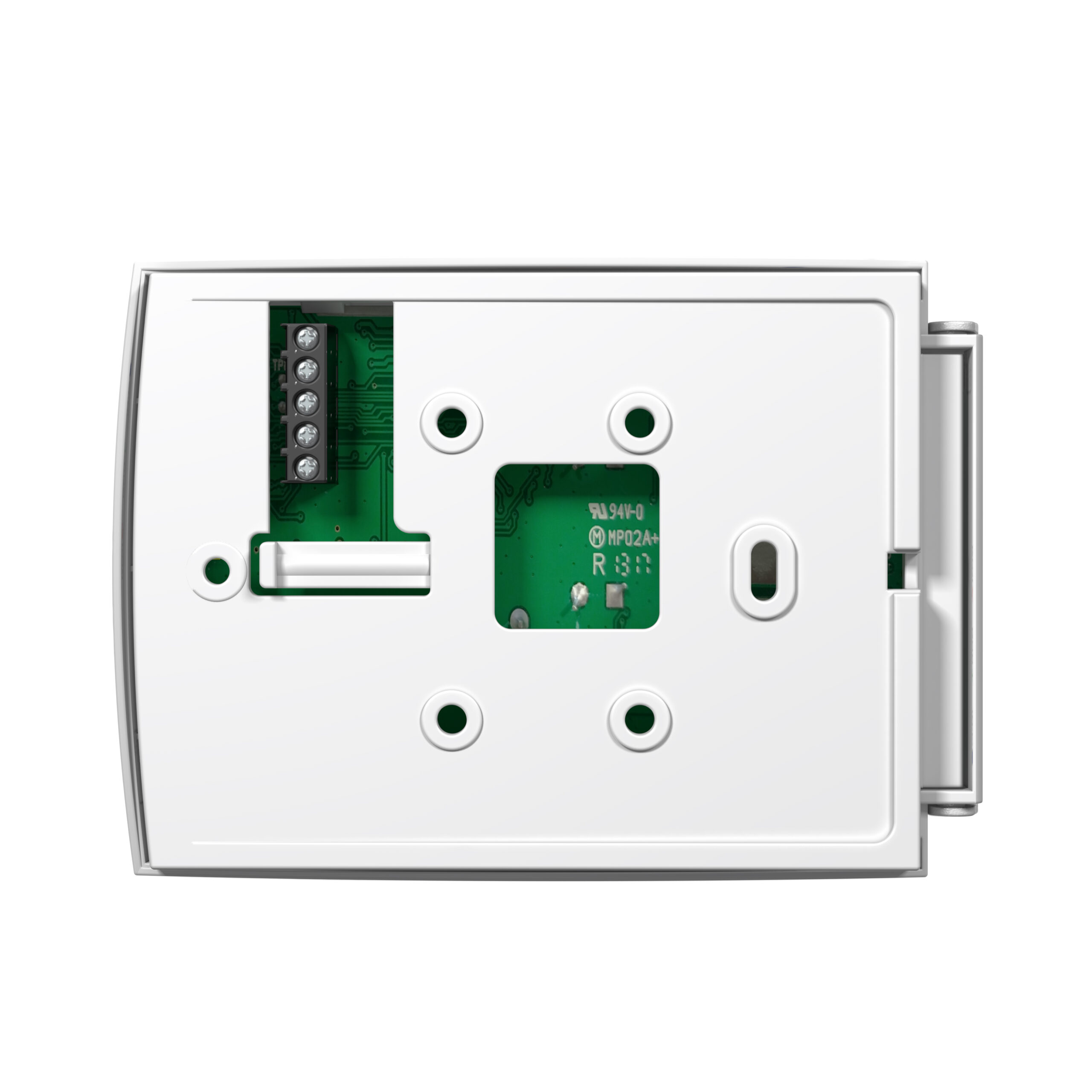

• Installation: Wall mount
• Layout: Horizontal
• Compatibility: MG5000, MG5050, MG5075 and Spectra SP Series
• Application: Alarm system control and status monitoring
• Certification: CE
