🧰 Technical specifications
• Model: NV5
• Type: Digital PIR Motion Detector
• Detection technology: Digital PIR
• Sensor type: Digital infrared sensor
• Sensitivity levels: 5 adjustable levels
• Pet resistant: Yes
• Signal processing: Auto Pulse Signal Processing (APSP)
• Edge processing: Dual Edge / Single Edge Processing
• Temperature compensation: Digital temperature compensation
• RF immunity: Enhanced RF immunity
• Detection performance: Uniform detection without dead zones
• Detection speed: Optimized for slow and fast movement detection
• Creep zone: Adjustable
• Lens technology: Hybrid Cylindrical-Spherical Lens (3rd Generation 3D LoDiff® Fresnel)
• Far beam technology: Cylindrical optics
• Near and medium beam technology: Spherical optics

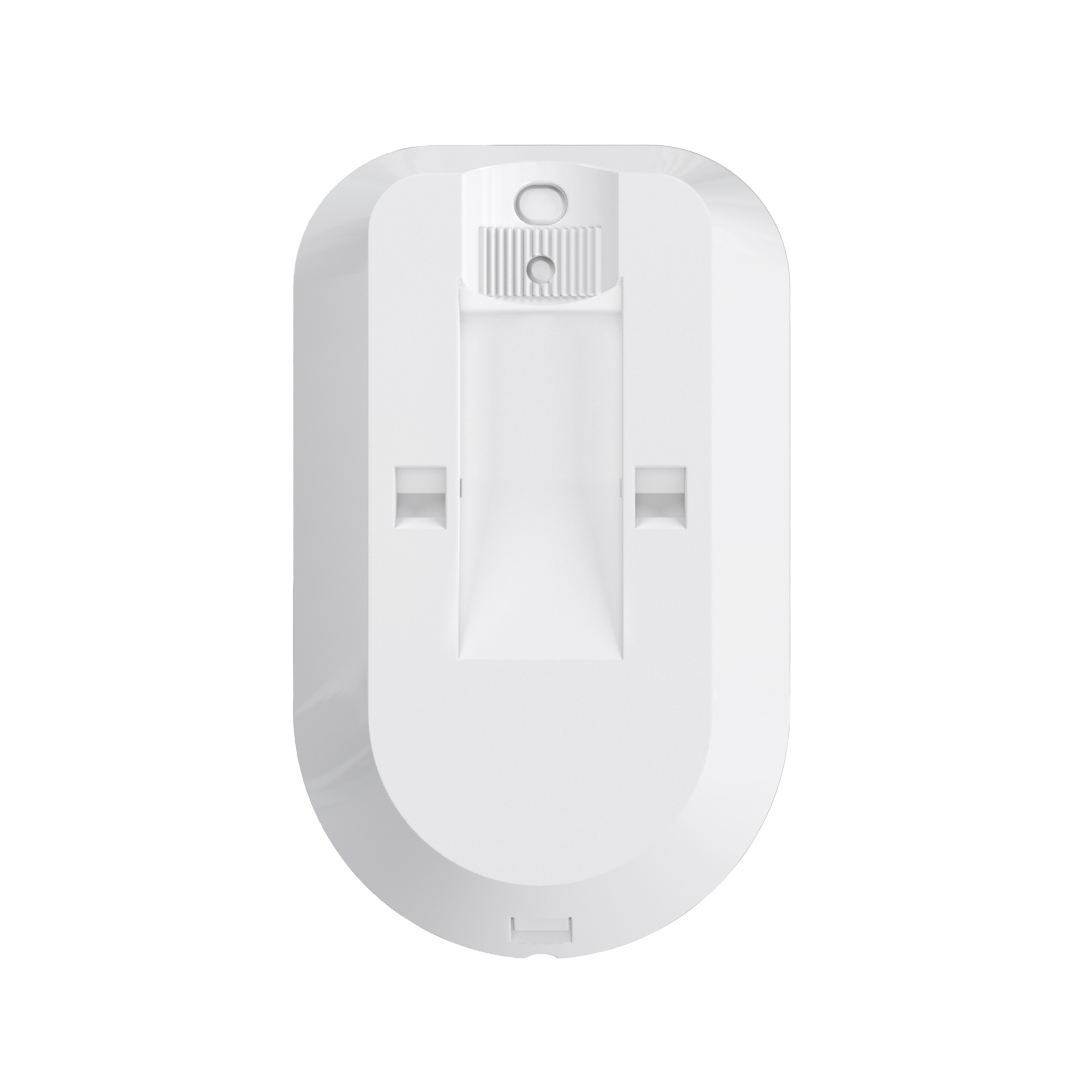

• Mounting options: Wall mount / Optional wall-ceiling bracket
• Installation time: Approximately 5–10 minutes
• Panel compatibility: EVO, Spectra, Magellan, Third-party panels
• Firmware: Enhanced digital firmware
• False alarm immunity: Advanced
• Certification: EN50131 Grade 2
• Application: Indoor residential and commercial intrusion detection systems
